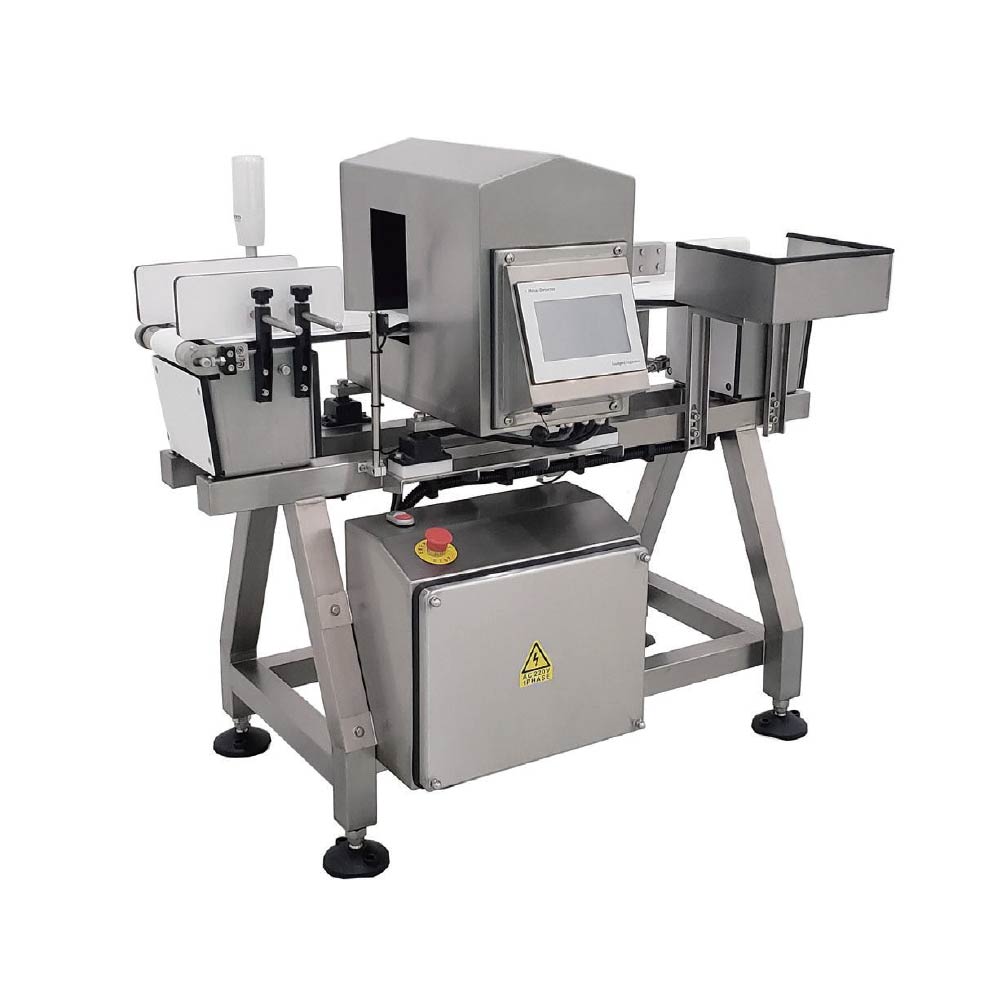

瓶裝產品專用金屬檢測機<div style="font-size:0.7em;">Bottle Metal Detector</div>

瓶裝產品專用金屬檢測機
Bottle Metal Detector

  • 針對瓶裝產品客製設計，檢測精度較常規產品提升最高可達 30%。
  • 可偵測鐵、不鏽鋼、銅、鋁及鉛等各種金屬雜質。
  • 針對瓶裝產品，輸送與剔除採客製化設計，實現無縫銜接與剔除。
  • 提供符合歐美安全法規的輸出防護設計。
  • Customized design for bottled products, with inspection accuracy up to 30% higher than conventional products.
  • Capable of detecting various metal contaminants such as ferrous, stainless steel, copper, aluminum, and lead.
  • Customized conveying and rejection system for bottled products ensures seamless transfer and rejection.
  • Output protection design complies with European and American safety regulations.
分類:

機台規格

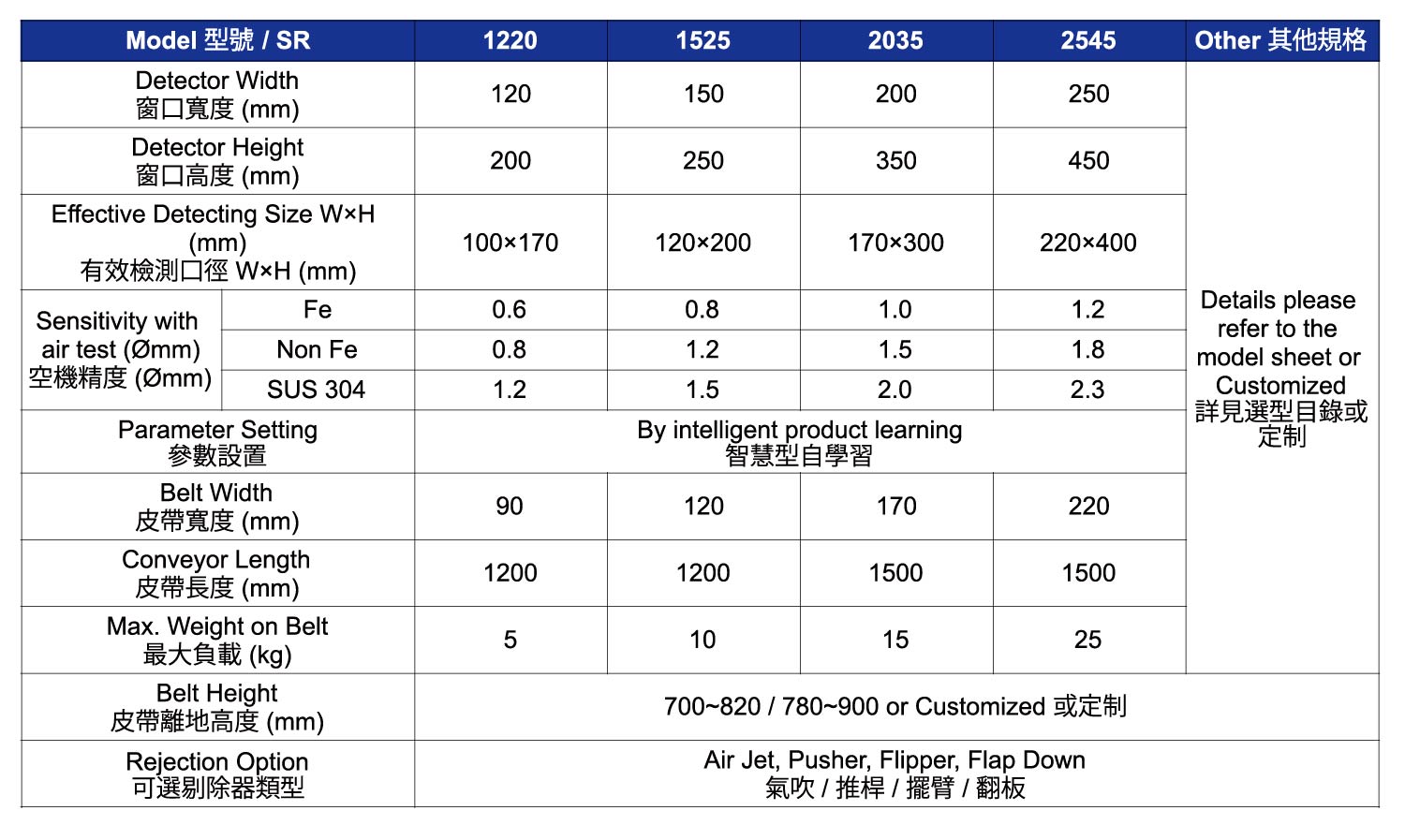

Model 型號 / SR 1220 1525 2035 2545 Other 其他規格
Detector Width
窗口寬度 (mm)		 120 150 200 250 Details please refer to the model sheet or Customized
詳見選型目錄或定制
Detector Height
窗口高度 (mm)		 200 250 350 450
Effective Detecting Size W×H (mm)
有效檢測口徑 W×H (mm)		 100×170 120×200 170×300 220×400
Sensitivity with
air test (Ømm)
空機精度 (Ømm)		 Fe 0.6 0.8 1.0 1.2
Non Fe 0.8 1.2 1.5 1.8
SUS 304 1.2 1.5 2.0 2.3
Parameter Setting
參數設置		 By intelligent product learning
智慧型自學習
Belt Width
皮帶寬度 (mm)		 90 120 170 220
Conveyor Length
皮帶長度 (mm)		 1200 1200 1500 1500
Max. Weight on Belt
最大負載 (kg)		 5 10 15 25
Belt Height
皮帶離地高度 (mm)		 700~820 / 780~900 or Customized 或定制
Rejection Option
可選剔除器類型		 Air Jet, Pusher, Flipper, Flap Down
氣吹 / 推桿 / 擺臂 / 翻板
