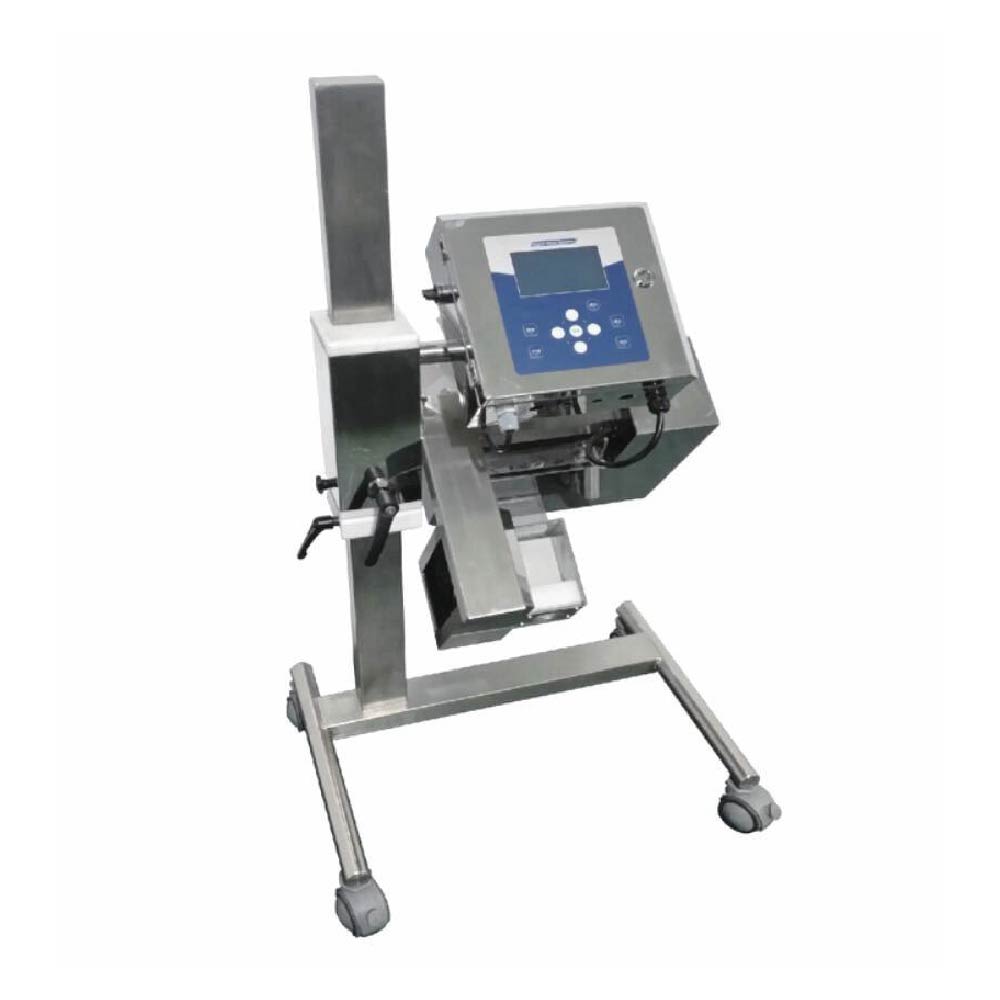

片劑膠囊專用金屬檢測機

Capsule Metal Detector

擁有歷史資料追溯功能及 IQ/OQ/PQ 認證文件，符合藥廠檢測需求與 GMP 認證。
可偵測鐵、不鏽鋼、銅、鋁及鉛等各種金屬雜質。
採用日本 Shindengen 無壓縮空氣剔除系統，更適合潔淨環境安裝。
具備智慧自學習技術，參數設定簡便。
Traceability of records with IQ/OQ/PQ certification, meeting pharmaceutical plant requirements and GMP certification.
Capable of detecting various metal contaminants such as ferrous, stainless steel, copper, aluminum, and lead.
Japanese Shindengen rejection system without the need for compressed air, suitable for cleanroom environments.
Automatic parameter setting through intelligent product learning.

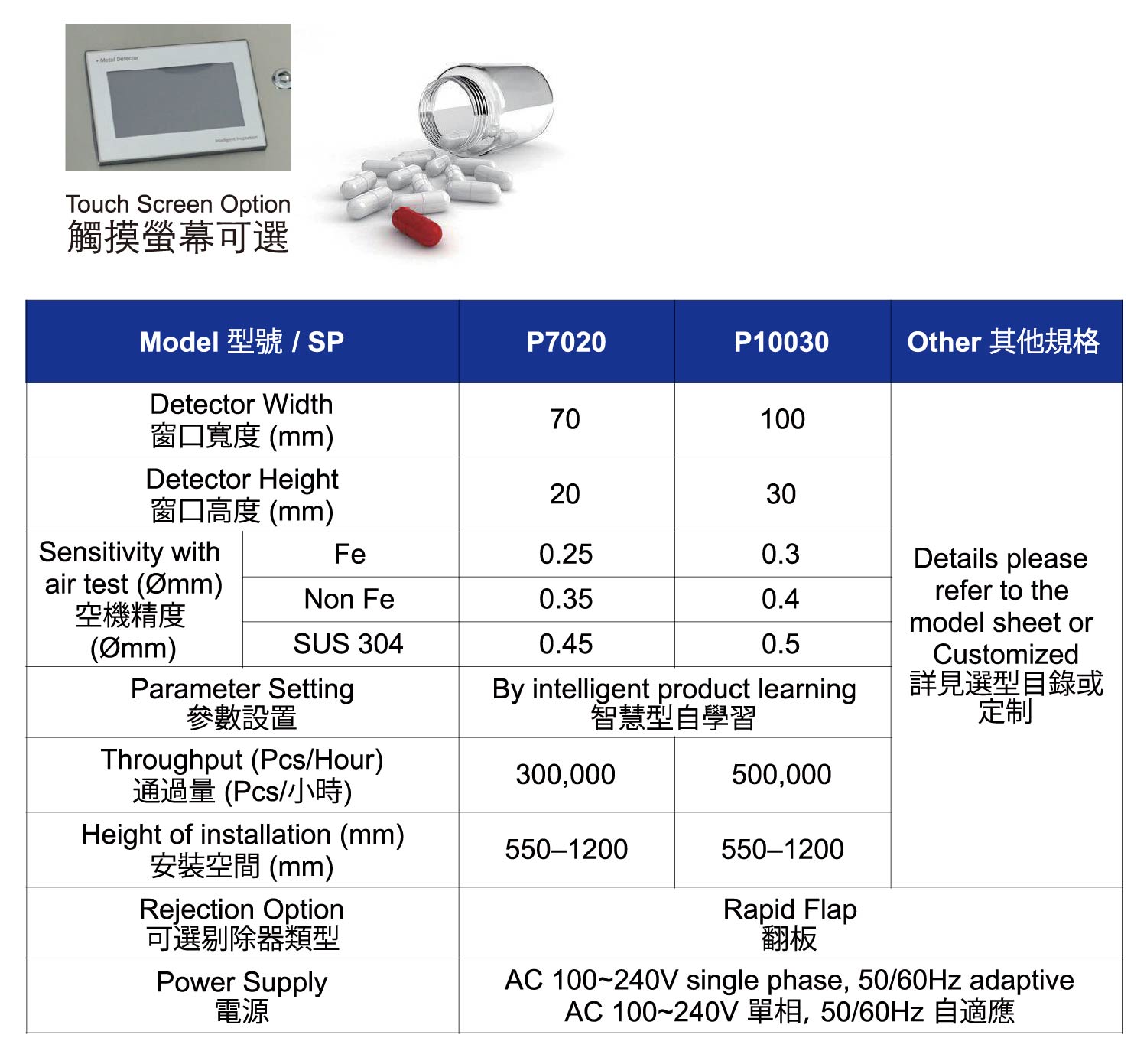

機台規格

Model 型號 / SP		P7020	P10030	Other 其他規格
Detector Width 窗口寬度 (mm)		70	100	Details please refer to the model sheet or Customized 詳見選型目錄或定制
Detector Height 窗口高度 (mm)		20	30
Sensitivity with air test (Ømm) 空機精度 (Ømm)	Fe	0.25	0.3
	Non Fe	0.35	0.4
	SUS 304	0.45	0.5
Parameter Setting 參數設置		By intelligent product learning 智慧型自學習
Throughput (Pcs/Hour) 通過量 (Pcs/小時)		300,000	500,000
Height of installation (mm) 安裝空間 (mm)		550–1200	550–1200
Rejection Option 可選剔除器類型		Rapid Flap 翻板
Power Supply 電源		AC 100~240V single phase, 50/60Hz adaptive AC 100~240V 單相, 50/60Hz 自適應
