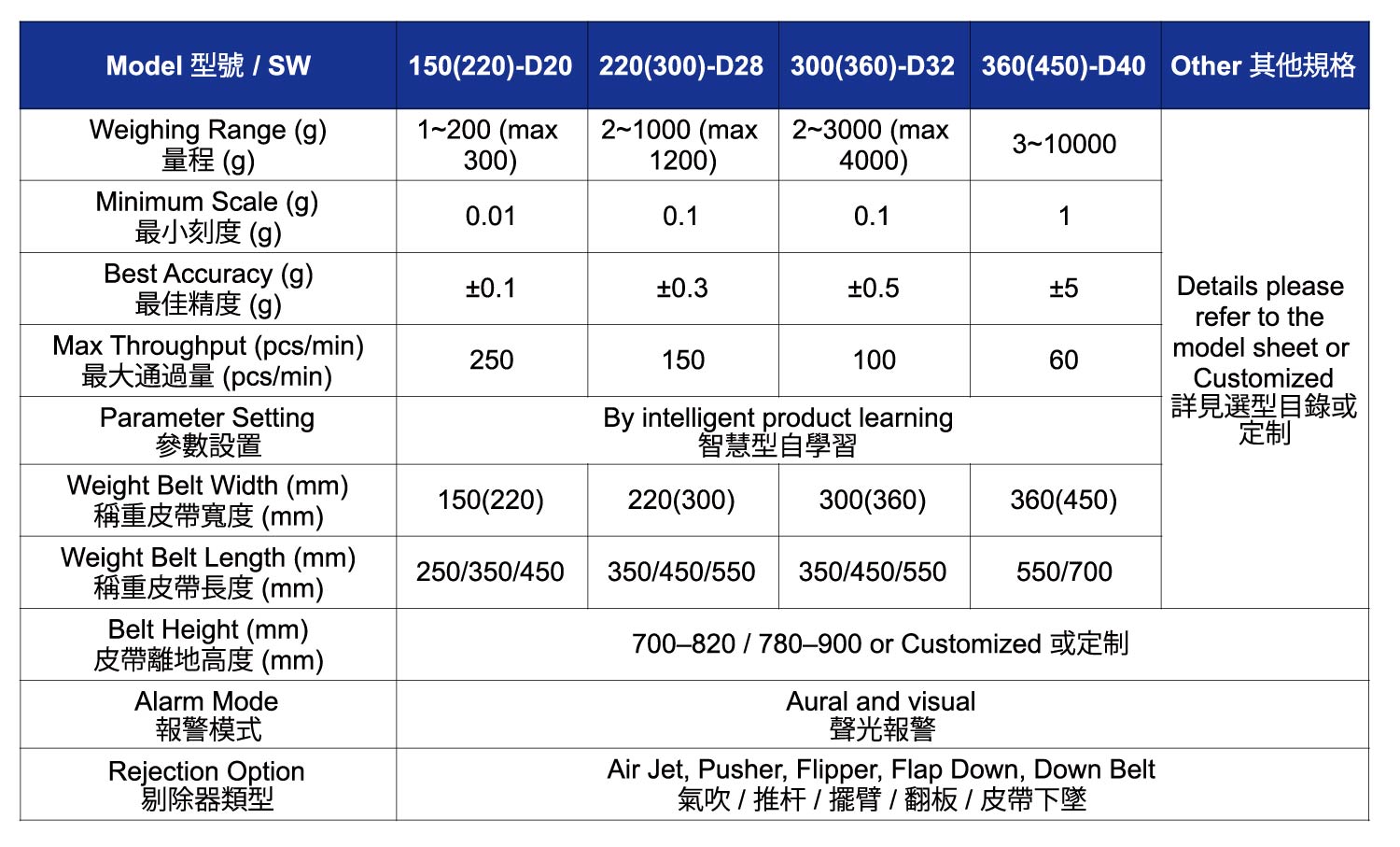

機台規格
| Model 型號 / SW | 150(220)-D20 | 220(300)-D28 | 300(360)-D32 | 360(450)-D40 | Other 其他規格 |
|---|---|---|---|---|---|
| Weighing Range (g) 量程 (g) |
1~200 (max 300) | 2~1000 (max 1200) | 2~3000 (max 4000) | 3~10000 | Details please refer to the model sheet or Customized 詳見選型目錄或定制 |
| Minimum Scale (g) 最小刻度 (g) |
0.01 | 0.1 | 0.1 | 1 | |
| Best Accuracy (g) 最佳精度 (g) |
±0.1 | ±0.3 | ±0.5 | ±5 | |
| Max Throughput (pcs/min) 最大通過量 (pcs/min) |
250 | 150 | 100 | 60 | |
| Parameter Setting 參數設置 |
By intelligent product learning 智慧型自學習 |
||||
| Weight Belt Width (mm) 稱重皮帶寬度 (mm) |
150(220) | 220(300) | 300(360) | 360(450) | |
| Weight Belt Length (mm) 稱重皮帶長度 (mm) |
250/350/450 | 350/450/550 | 350/450/550 | 550/700 | |
| Belt Height (mm) 皮帶離地高度 (mm) |
700–820 / 780–900 or Customized 或定制 | ||||
| Alarm Mode 報警模式 |
Aural and visual 聲光報警 |
||||
| Rejection Option 剔除器類型 |
Air Jet, Pusher, Flipper, Flap Down, Down Belt 氣吹 / 推桿 / 擺臂 / 翻板 / 皮帶下墜 |
||||
