機台規格

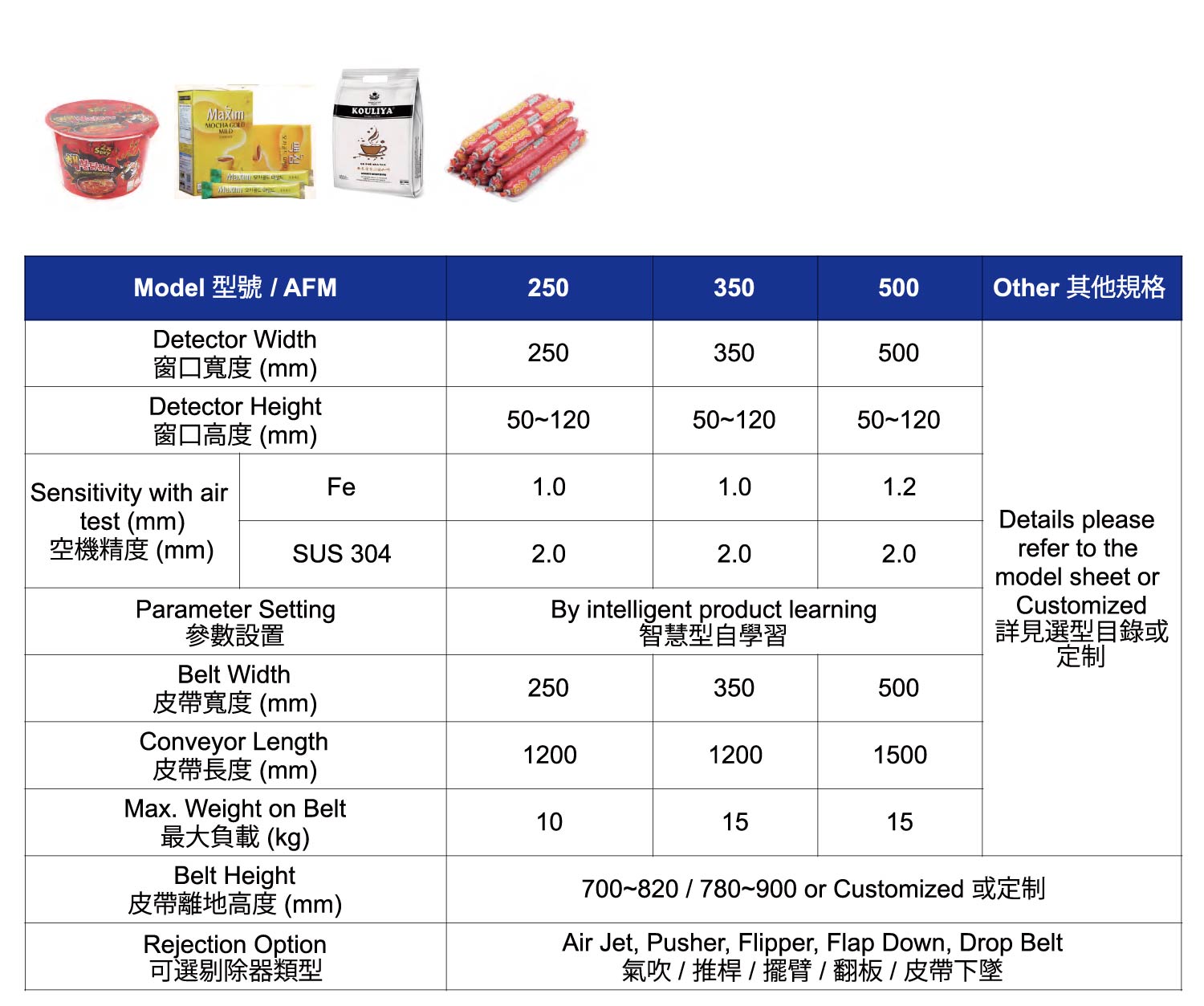

| Model 型號 / AFM | 250 | 350 | 500 | Other 其他規格 | |
|---|---|---|---|---|---|
| Detector Width 窗口寬度 (mm) |
250 | 350 | 500 | Details please refer to the model sheet or Customized 詳見選型目錄或定制 |
|
| Detector Height 窗口高度 (mm) |
50~120 | 50~120 | 50~120 | ||
| Sensitivity with air test (mm) 空機精度 (mm) |
Fe | 1.0 | 1.0 | 1.2 | |
| SUS 304 | 2.0 | 2.0 | 2.0 | ||
| Parameter Setting 參數設置 |
By intelligent product learning 智慧型自學習 |
||||
| Belt Width 皮帶寬度 (mm) |
250 | 350 | 500 | ||
| Conveyor Length 皮帶長度 (mm) |
1200 | 1200 | 1500 | ||
| Max. Weight on Belt 最大負載 (kg) |
10 | 15 | 15 | ||
| Belt Height 皮帶離地高度 (mm) |
700~820 / 780~900 or Customized 或定制 | ||||
| Rejection Option 可選剔除器類型 |
Air Jet, Pusher, Flipper, Flap Down, Drop Belt 氣吹 / 推桿 / 擺臂 / 翻板 / 皮帶下墜 |
||||
