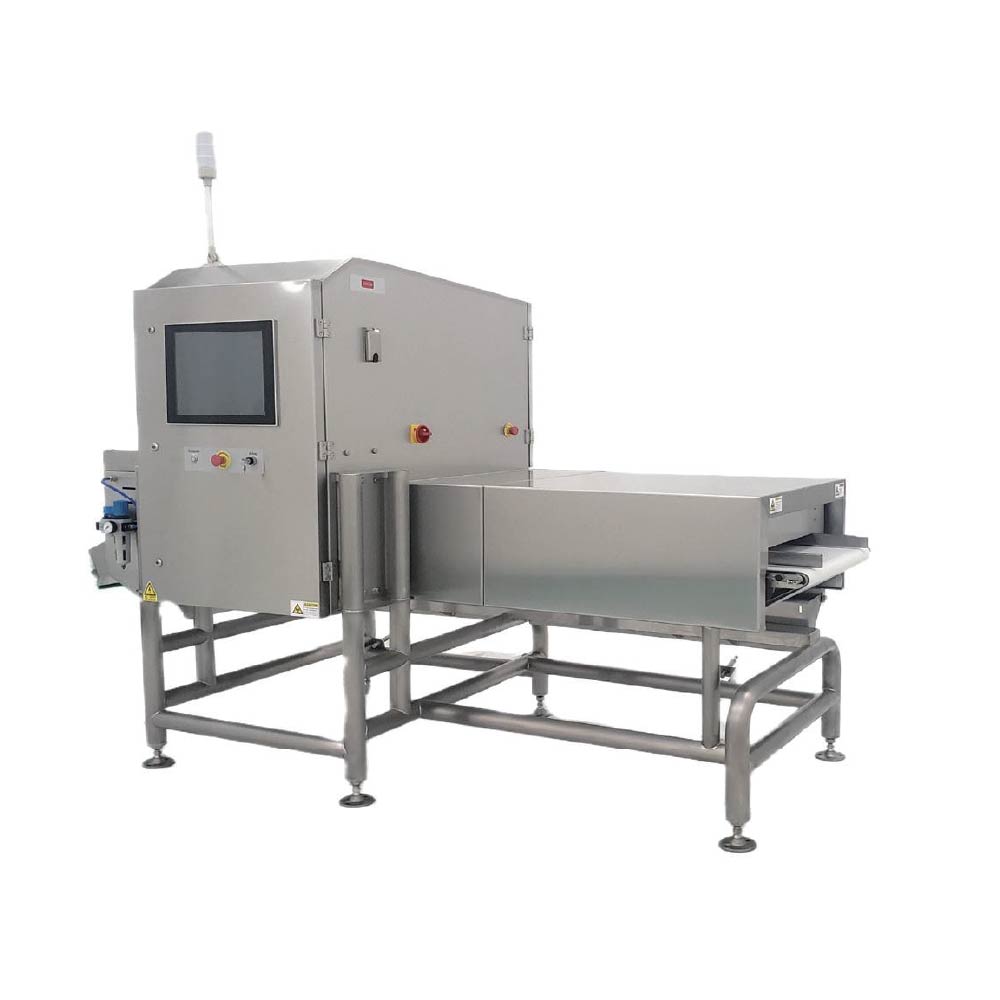

視覺和X光缺陷檢測機<span style="font-size:0.7em">(封口漏油夾料等)</span><div style="font-size:0.7em;">Visual and X-ray Defect Inspection System</div>

視覺和X光缺陷檢測機(封口漏油夾料等)
Visual and X-ray Defect Inspection System

  • 基於 BHI 人工智慧影像演算法平台，結合高效能相機或 X-ray 探測器與深度學習技術，可在線完成各類缺陷檢測，具備一流的靈敏度與準確性，可全面取代人工檢測。

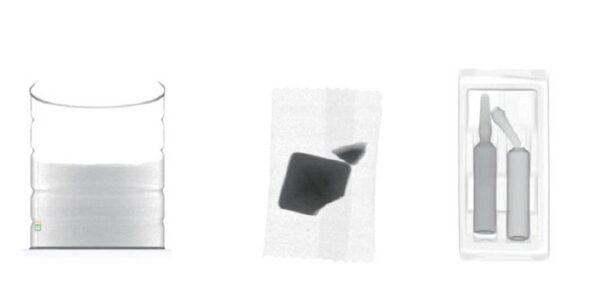

  • 包裝袋開口封口夾持檢測，適用於 PET 包裝、鍍鋁膜包裝、金屬包裝等。
  • 盒裝產品缺陷檢測：包含噴碼異常、盒裝開口、產品異常及異物檢測等。
  • 瓶裝產品缺陷檢測：包含噴碼異常、瓶口破損、液位、標籤、異物及鋁箔封口檢測等。
  • Based on BHI’s AI image processing platform, combined with high-performance cameras or X-ray detectors and deep learning, it enables real-time inline detection of various defects with first-class sensitivity and accuracy, fully replacing manual inspection.
  • The sealing clamp at the packaging bag opening can be used for PET packaging, aluminized film packaging, metal packaging, etc.
  • Defect detection for boxed products, including abnormal spray codes, box opening, product abnormalities, foreign object detection, etc.
  • Defect detection for bottled products, including abnormal spray codes, bottle mouth damage, liquid level, labeling, foreign objects, aluminum foil seal detection, etc.
分類:

機台規格

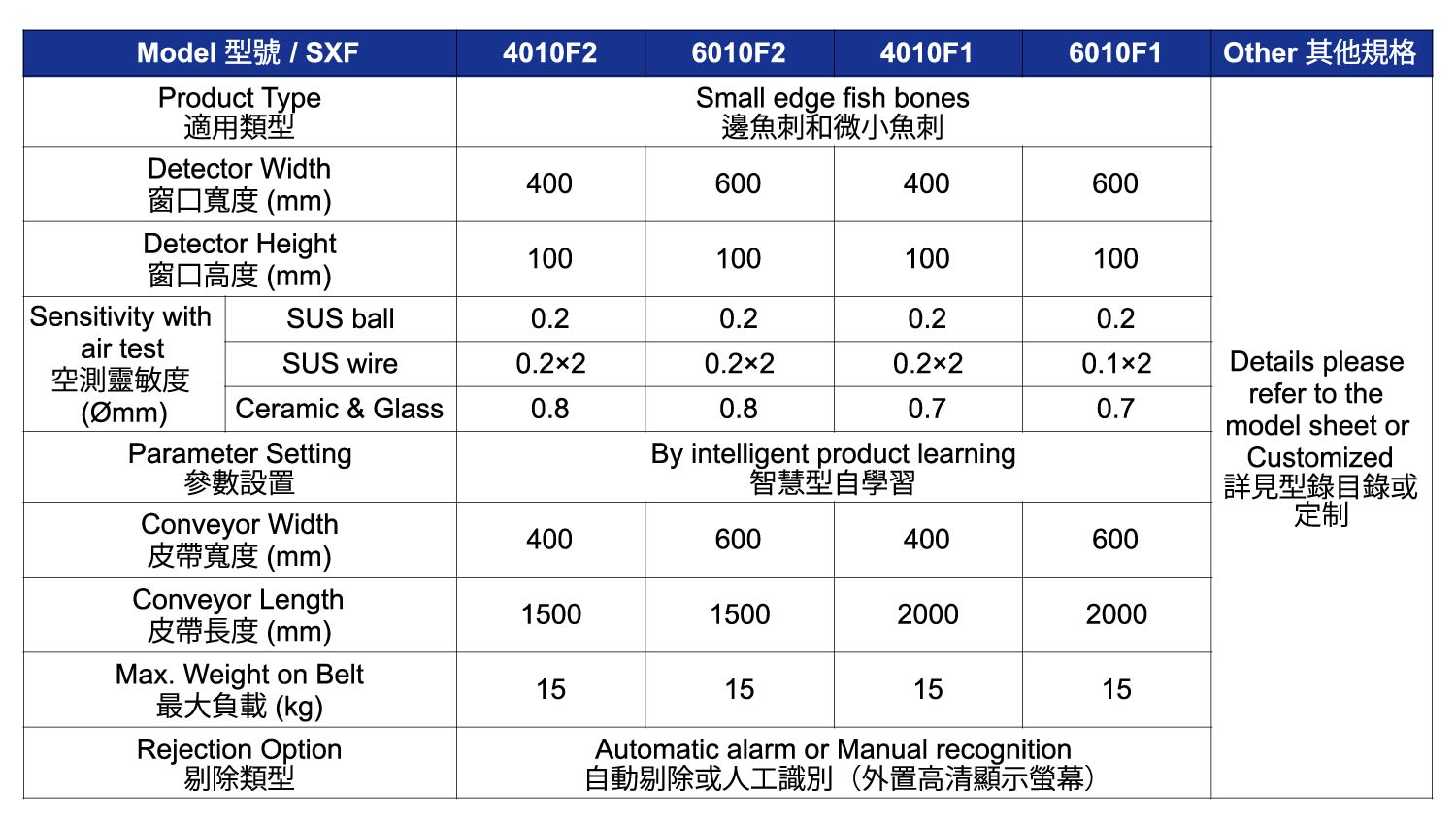

Model 型號 / SXF 4010F2 6010F2 4010F1 6010F1 Other 其他規格
Product Type
適用類型		 Small edge fish bones
邊魚刺和微小魚刺		 Details please refer to the model sheet or Customized
詳見選型目錄或定制
Detector Width
窗口寬度 (mm)		 400 600 400 600
Detector Height
窗口高度 (mm)		 100 100 100 100
Sensitivity with
air test
空測靈敏度
(Ømm)		 SUS ball 0.2 0.2 0.2 0.2
SUS wire 0.2×2 0.2×2 0.2×2 0.1×2
Ceramic & Glass 0.8 0.8 0.7 0.7
Parameter Setting
參數設置		 By intelligent product learning
智慧型自學習
Conveyor Width
皮帶寬度 (mm)		 400 600 400 600
Conveyor Length
皮帶長度 (mm)		 1500 1500 2000 2000
Max. Weight on Belt
最大負載 (kg)		 15 15 15 15
Rejection Option
剔除類型		 Automatic alarm or Manual recognition
自動剔除或人工識別（外置高清顯示螢幕）
