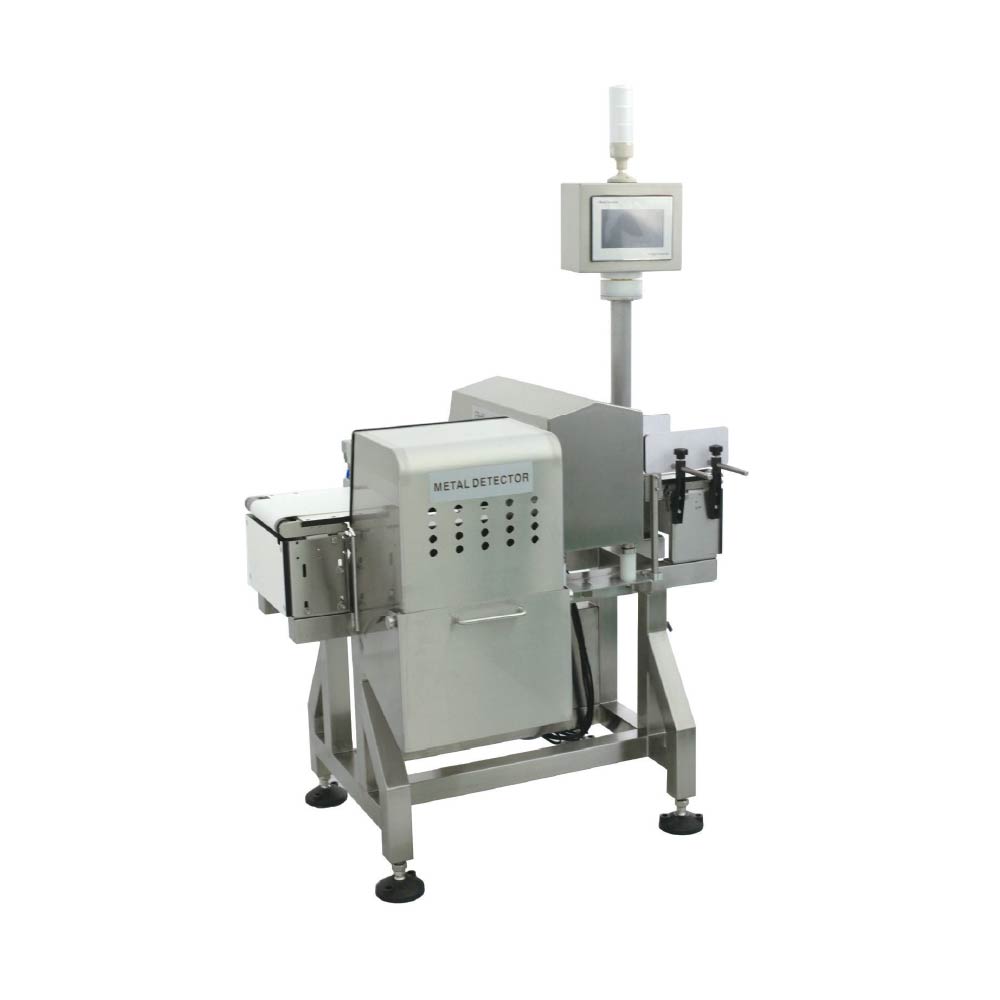

脫氧劑遺漏高速檢測機<div style="font-size:0.7em;">Deoxidizer Omission High-speed Detector</div>

脫氧劑遺漏高速檢測機
Deoxidizer Omission High-speed Detector

  • 高速檢測產品中的脫氧劑缺失，適用於高速生產線。
  • 採用高速感測器與高速演算法，機身小巧緊湊。
  • 採用硬填充技術機頭，確保設備長壽命。
  • 具備智能學習功能，操作簡便。
  • 採用抗干擾隔離通訊技術，操作面板可遠距離安裝。
  • 提供多樣化輸送設計，如衛生級快拆設計，符合歐美安全法規。
  • The detection of missing deoxidizers in products is suitable for high-speed production lines.
  • High-speed sensors and software algorithms with a compact device design.
  • Hard filling technology head ensures long service life of the equipment.
  • Intelligent learning function, easy to operate.
  • Anti-interference isolated communication technology allows remote installation of the operation panel.
  • A variety of conveying designs, such as hygienic quick-disassembly design, comply with European and American safety regulations.
分類:

機台規格

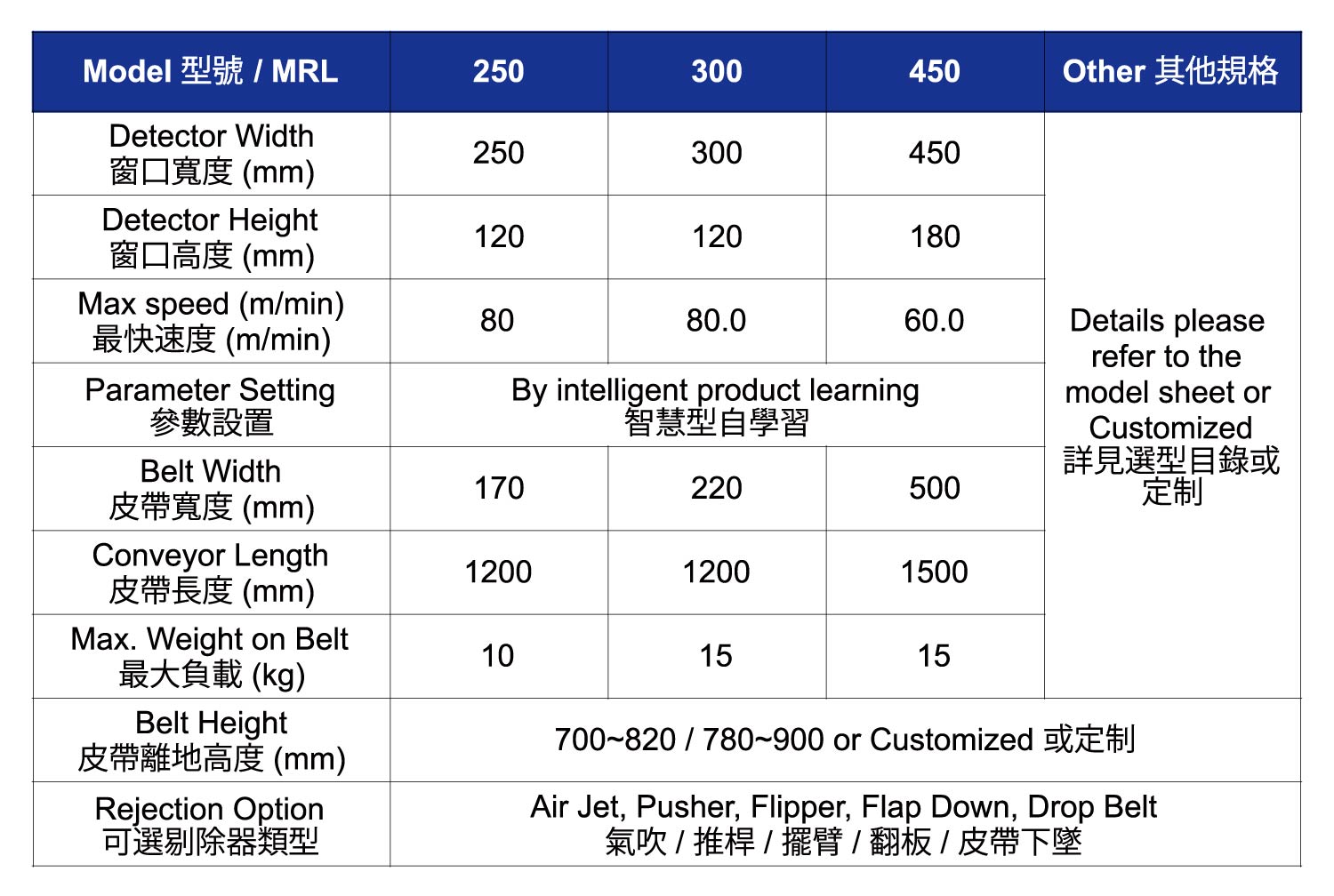

Model 型號 / MRL 250 300 450 Other 其他規格
Detector Width
窗口寬度 (mm)		 250 300 450 Details please refer to the model sheet or Customized
詳見選型目錄或定制
Detector Height
窗口高度 (mm)		 120 120 180
Max speed (m/min)
最快速度 (m/min)		 80 80.0 60.0
Parameter Setting
參數設置		 By intelligent product learning
智慧型自學習
Belt Width
皮帶寬度 (mm)		 170 220 500
Conveyor Length
皮帶長度 (mm)		 1200 1200 1500
Max. Weight on Belt
最大負載 (kg)		 10 15 15
Belt Height
皮帶離地高度 (mm)		 700~820 / 780~900 or Customized 或定制
Rejection Option
可選剔除器類型		 Air Jet, Pusher, Flipper, Flap Down, Drop Belt
氣吹 / 推桿 / 擺臂 / 翻板 / 皮帶下墜
