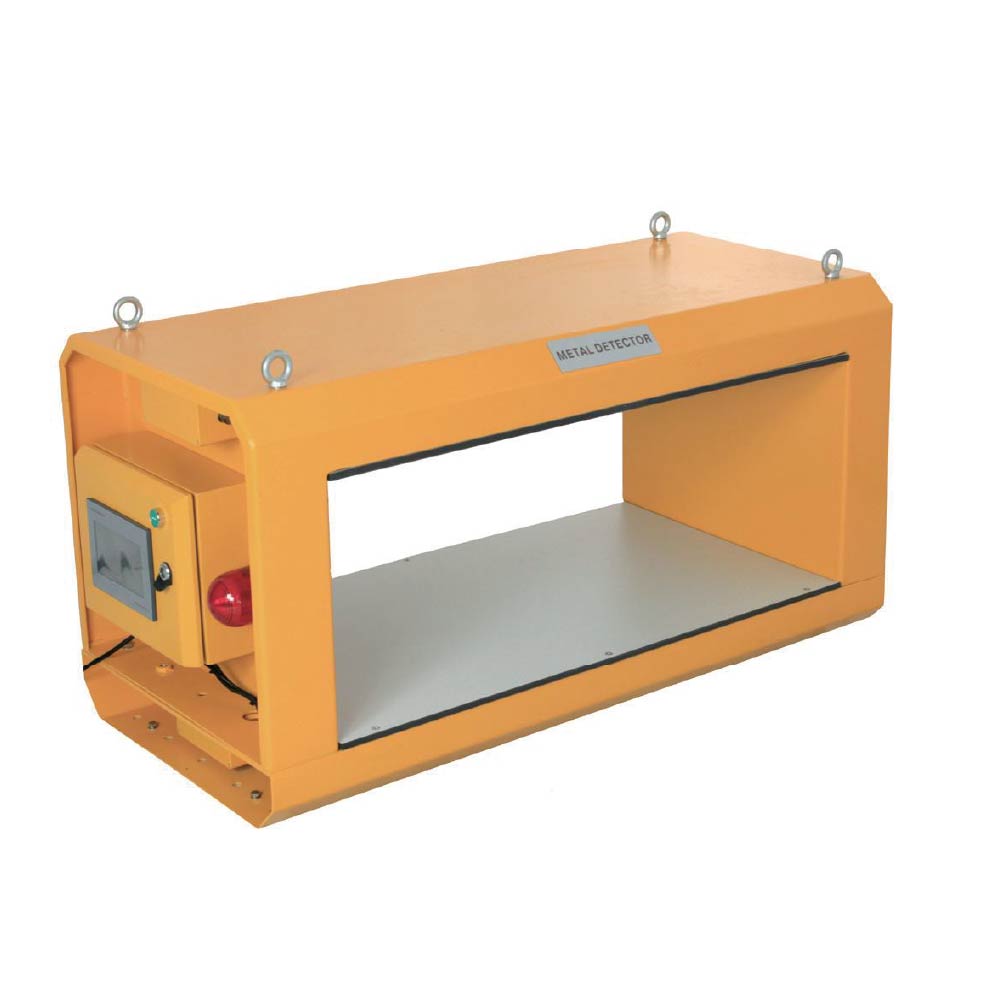

金屬檢測機
Rubber and Plastic Metal Detector

  • 獨特的硬體與軟體抗干擾設計，能適應複雜的工業現場應用。
  • 可偵測鐵、不鏽鋼、銅、鋁及鉛等各種金屬雜質。
  • 具備智慧自學習技術，參數設定簡便。
  • 提供多樣化產品類型選擇，從封閉式同軸線圈到對向式獨立線圈。
  • Unique hardware and software anti-interference design, adaptable to complex industrial environments.
  • Capable of detecting various metal contaminants such as ferrous, stainless steel, copper, aluminum, and lead.
  • Automatic parameter setting through intelligent product learning.
  • A wide range of product types available, from coaxial coil to separate coil systems.
分類:

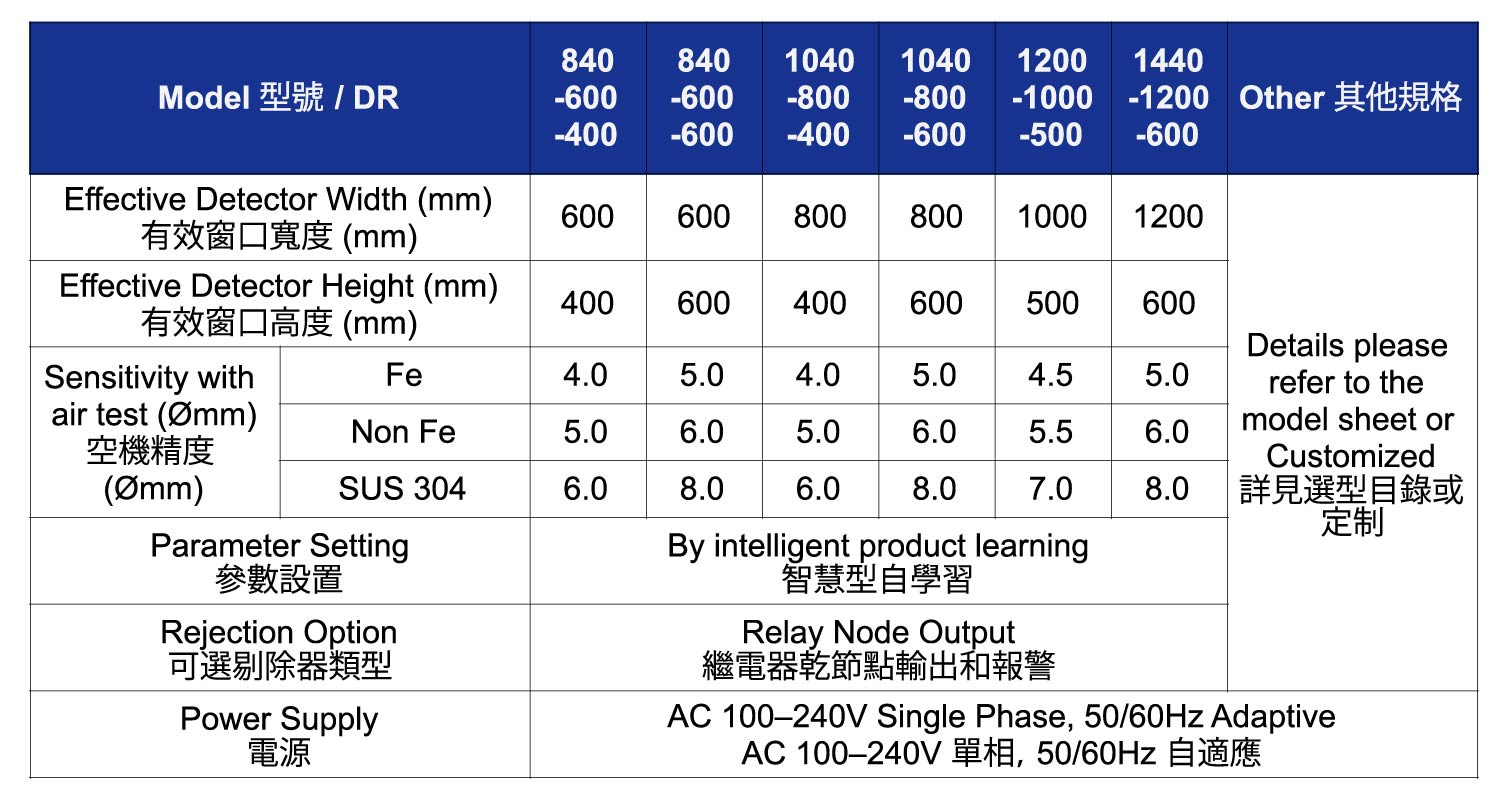

機台規格

Model 型號 / DR 840
-600
-400		 840
-600
-600		 1040
-800
-400		 1040
-800
-600		 1200
-1000
-500		 1440
-1200
-600		 Other 其他規格
Effective Detector Width (mm)
有效窗口寬度 (mm)		 600 600 800 800 1000 1200 Details please refer to the model sheet or Customized
詳見選型目錄或定制
Effective Detector Height (mm)
有效窗口高度 (mm)		 400 600 400 600 500 600
Sensitivity with
air test (Ømm)
空機精度
(Ømm)		 Fe 4.0 5.0 4.0 5.0 4.5 5.0
Non Fe 5.0 6.0 5.0 6.0 5.5 6.0
SUS 304 6.0 8.0 6.0 8.0 7.0 8.0
Parameter Setting
參數設置		 By intelligent product learning
智慧型自學習
Rejection Option
可選剔除器類型		 Relay Node Output
繼電器乾接點輸出和報警
Power Supply
電源		 AC 100–240V Single Phase, 50/60Hz Adaptive
AC 100–240V 單相, 50/60Hz 自適應
