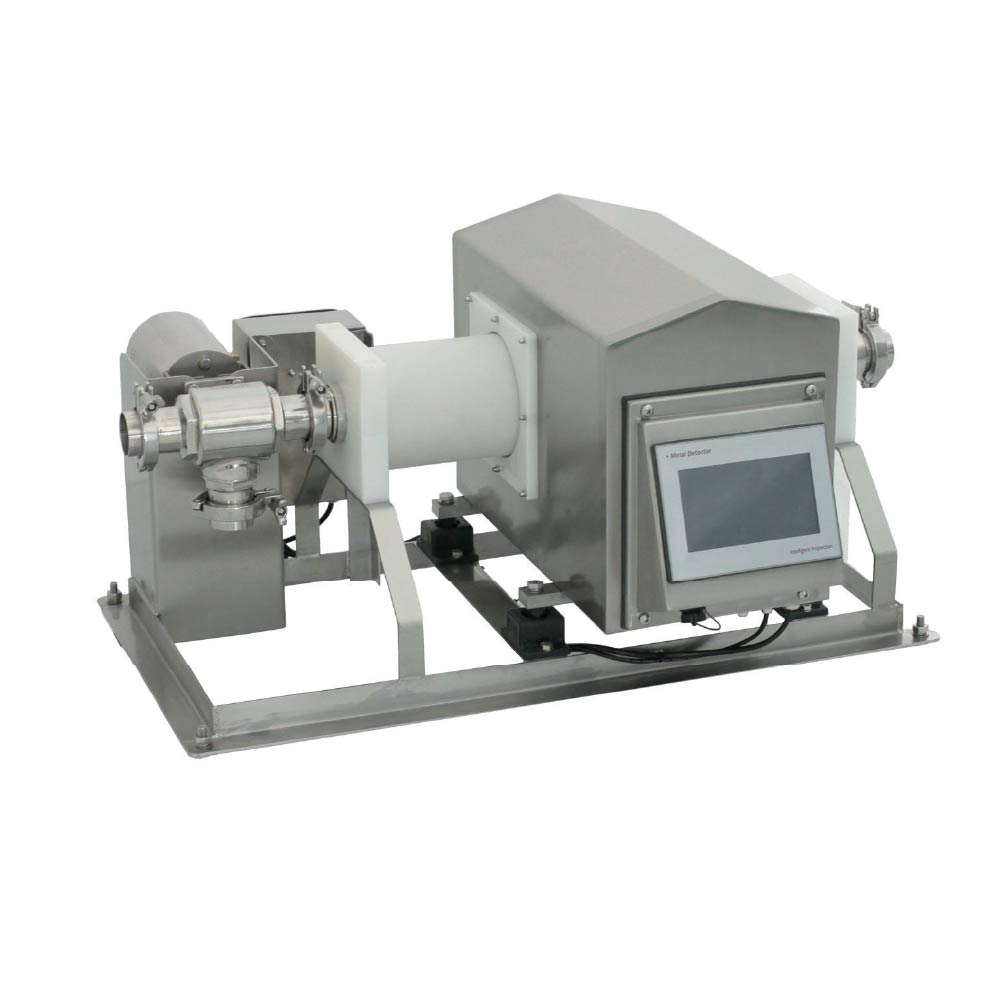

管道式金屬檢測機<div style="font-size:0.7em;">Pipeline Metal Detector</div>

管道式金屬檢測機
Pipeline Metal Detector

  • 適用於泵送壓輸的產品檢測，如肉類、醬汁等，符合工業標準。
  • 可偵測鐵、不鏽鋼、銅、鋁及鉛等各種金屬雜質。
  • 具備智慧自學習技術，參數設定簡便。
  • 可與 Handtmann、Vemag 等灌腸機配合使用。
  • 高度調整方便，提供多種剔除模式選擇，包含 CIP 清洗。
  • Suitable for the inspection of pumped products such as meat, sauces, etc., compliant with industrial standards.
  • Capable of detecting various metal contaminants such as ferrous, stainless steel, copper, aluminum, and lead.
  • Automatic parameter setting through intelligent product learning.
  • Compatible with Handtmann and Vemag sausage fillers.
  • Height adjustable with multiple rejection options, including CIP cleaning.
分類:

機台規格

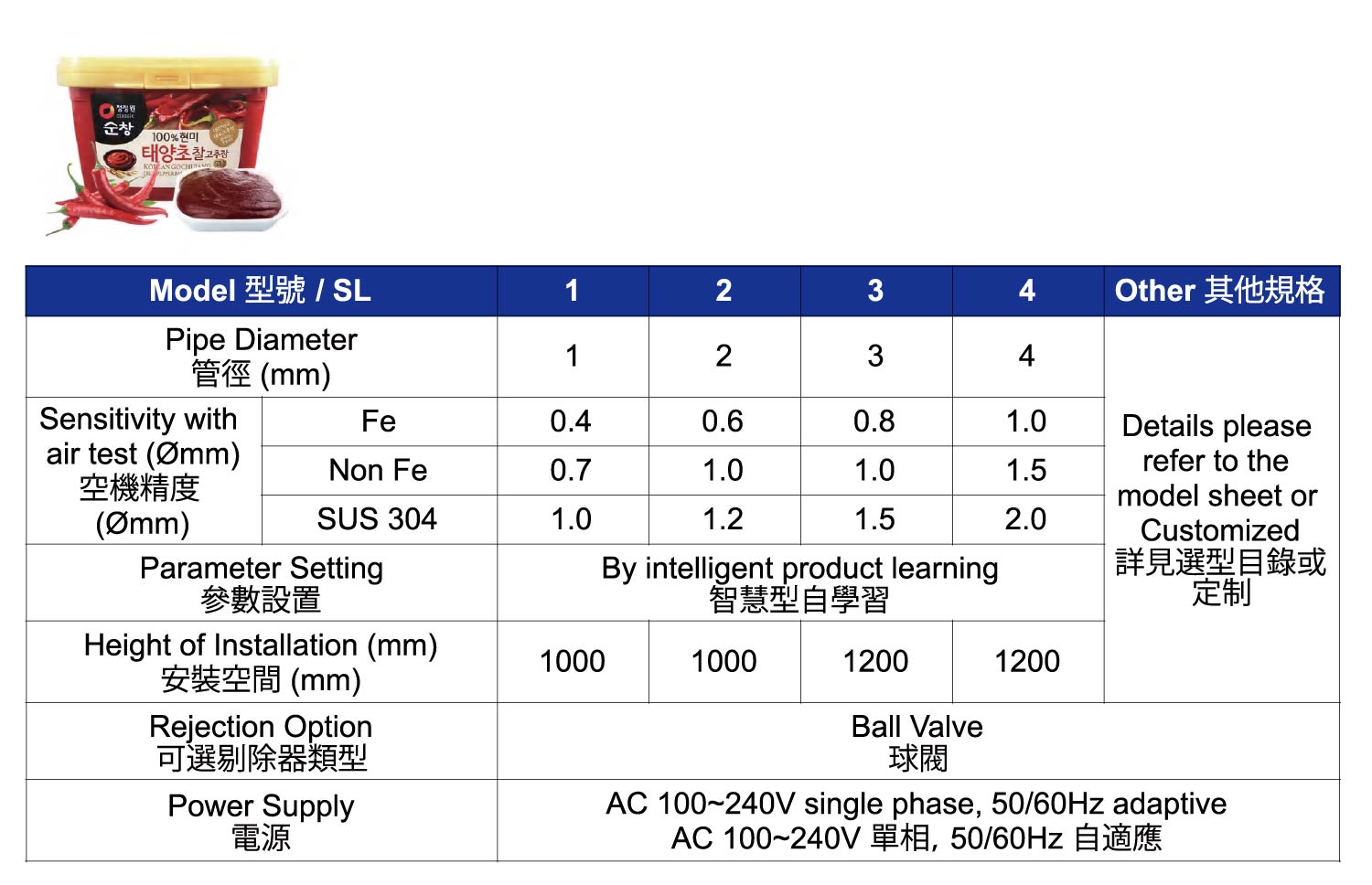

Model 型號 / SL 1 2 3 4 Other 其他規格
Pipe Diameter
管徑 (mm)		 1 2 3 4 Details please refer to the model sheet or Customized
詳見選型目錄或定制
Sensitivity with
air test (Ømm)
空機精度
(Ømm)		 Fe 0.4 0.6 0.8 1.0
Non Fe 0.7 1.0 1.0 1.5
SUS 304 1.0 1.2 1.5 2.0
Parameter Setting
參數設置		 By intelligent product learning
智慧型自學習
Height of Installation (mm)
安裝空間 (mm)		 1000 1000 1200 1200
Rejection Option
可選剔除器類型		 Ball Valve
球閥
Power Supply
電源		 AC 100~240V single phase, 50/60Hz adaptive
AC 100~240V 單相, 50/60Hz 自適應
