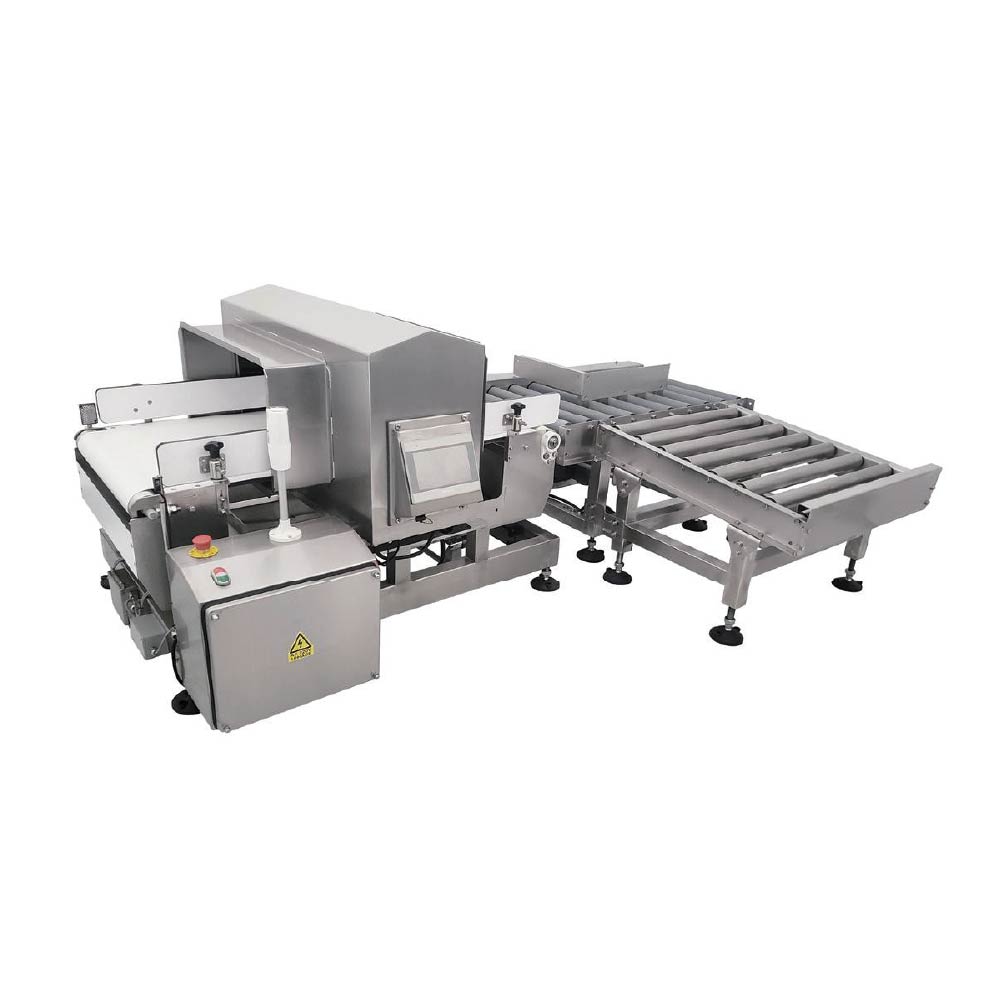

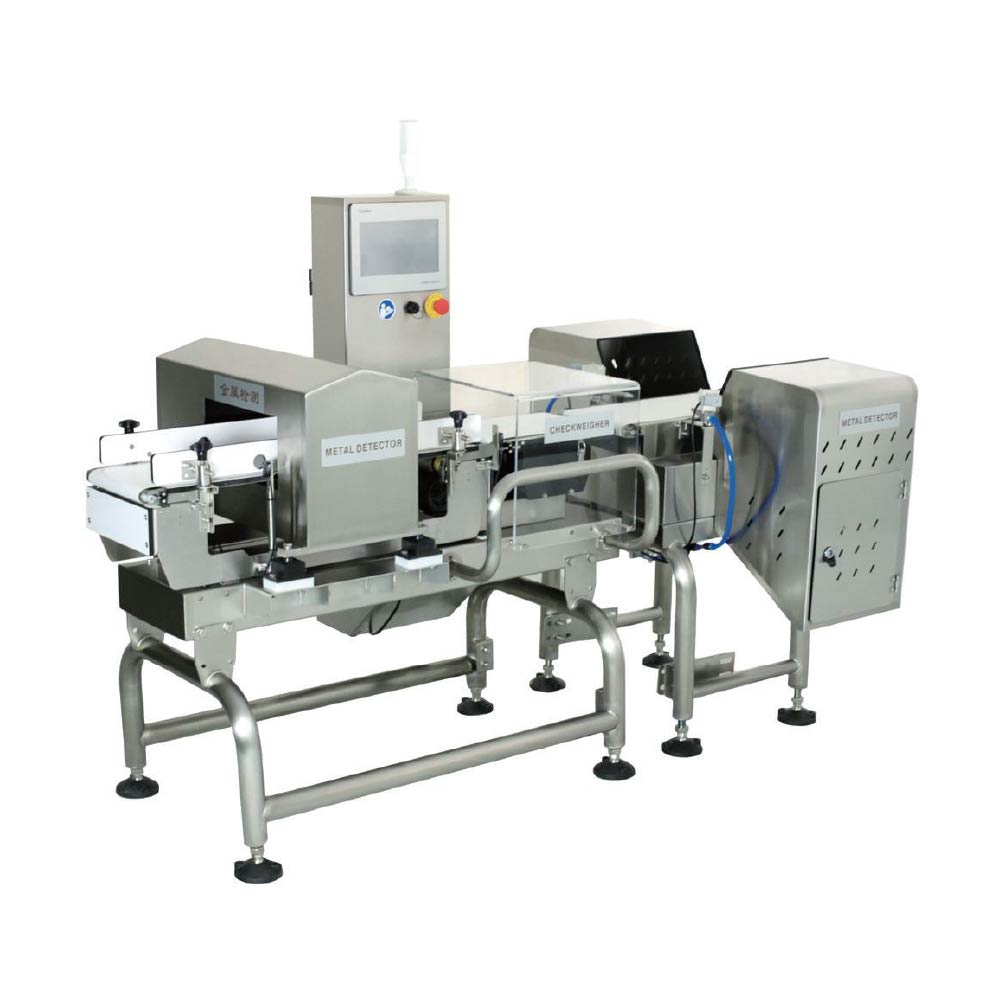

金屬檢測和重量檢測一體機

Combo Metal Detector&Checkweigher

採用全球一流供應商配件，結合硬填充技術的金屬檢測機頭與高效能重量檢測機，搭配智慧自適應演算法，確保系統具備高精度與易操作性。
金屬檢測與重量檢測參數整合於同一產品參數系統中，並於同一介面操作，降低誤操作風險；透過統一的智慧學習演算法與參數設定，實現金屬檢測與重量檢測的一體化。
採用統一觸控螢幕操作與控制，系統穩定、簡單且可靠。
Featuring world-class supplier components, combining metal detector heads based on hard-fill technology and high-performance checkweighers with intelligent adaptive algorithms to ensure high accuracy and ease of operation.
Metal detection and checkweighing parameters are integrated into a single product parameter system and operated through a unified interface, reducing operational errors; unified intelligent learning algorithms and parameter settings enable true integration of metal detector and checkweigher in one machine.
Unified touchscreen operation and control, ensuring stability, simplicity, and reliability.

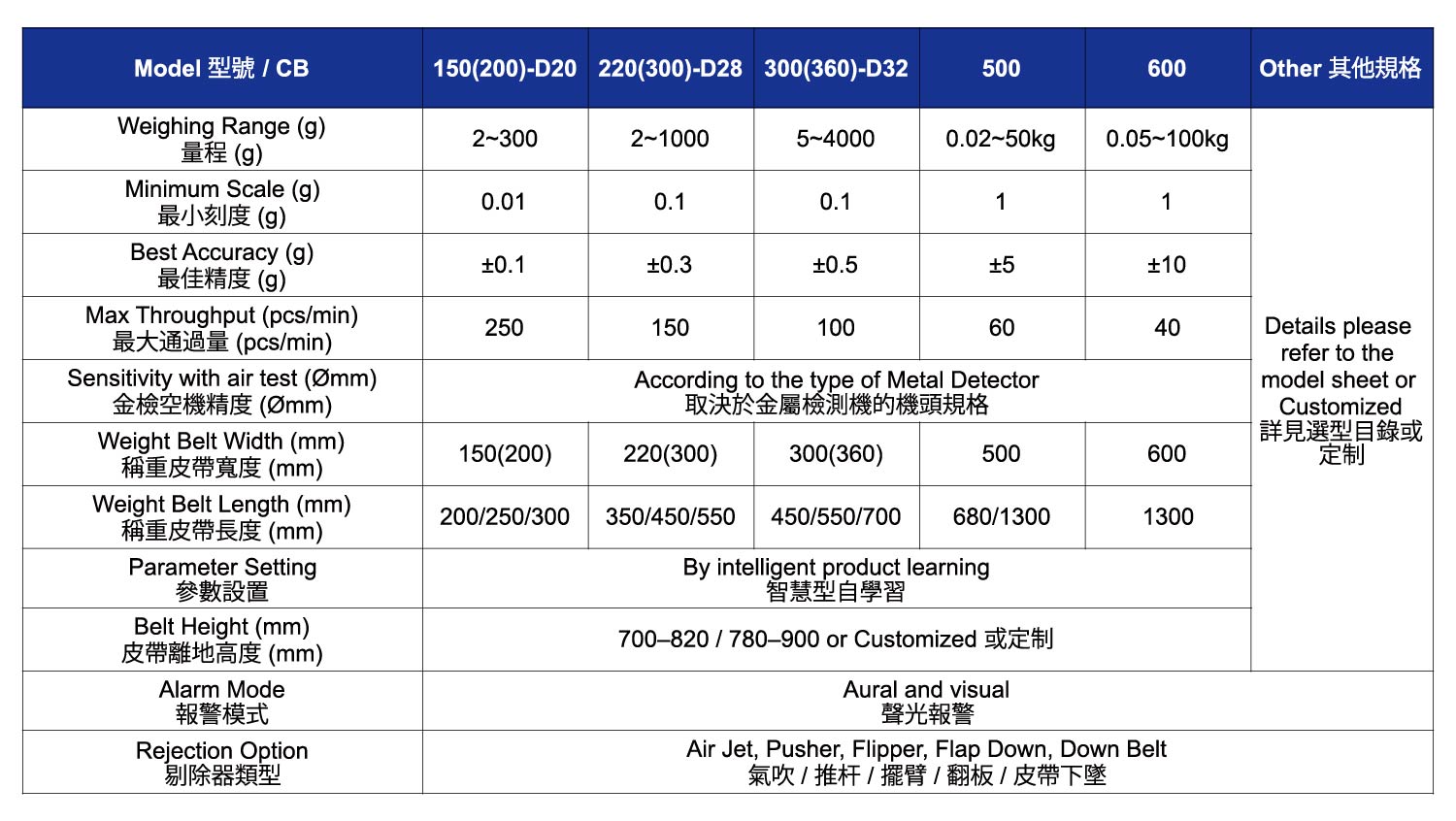

機台規格

Model 型號 / CB	150(200)-D20	220(300)-D28	300(360)-D32	500	600	Other 其他規格
Weighing Range (g) 量程 (g)	2~300	2~1000	5~4000	0.02~50kg	0.05~100kg	Details please refer to the model sheet or Customized 詳見選型目錄或定制
Minimum Scale (g) 最小刻度 (g)	0.01	0.1	0.1	1	1
Best Accuracy (g) 最佳精度 (g)	±0.1	±0.3	±0.5	±5	±10
Max Throughput (pcs/min) 最大通過量 (pcs/min)	250	150	100	60	40
Sensitivity with air test (Ømm) 金檢空機精度 (Ømm)	According to the type of Metal Detector 取決於金屬檢測機的機頭規格
Weight Belt Width (mm) 稱重皮帶寬度 (mm)	150(200)	220(300)	300(360)	500	600
Weight Belt Length (mm) 稱重皮帶長度 (mm)	200/250/300	350/450/550	450/550/700	680/1300	1300
Parameter Setting 參數設置	By intelligent product learning 智慧型自學習
Belt Height (mm) 皮帶離地高度 (mm)	700–820 / 780–900 or Customized 或定制
Alarm Mode 報警模式	Aural and visual 聲光報警
Rejection Option 剔除器類型	Air Jet, Pusher, Flipper, Flap Down, Down Belt 氣吹 / 推桿 / 擺臂 / 翻板 / 皮帶下墜
