魚刺X光檢測機

Fish Bone X-Ray Inspection System

針對魚肉加工過程中殘留的邊刺與中刺等細小魚刺的高精度檢測而設計。
具備 AI 深度學習技術，對 Y 型刺等高難度場景具有優異的檢測性能。
配備影像高精度增強演算法，細微魚刺一目了然。
探測通道防水等級 IP66，可進行水洗作業。
配備高效能除濕器，可耐受外在濕度達 90%。
自動儲存檢測圖片，用於產品檢測流程之品質追溯與控管。
Designed for high-precision detection of small fish bones such as edge and middle spines remaining during fish processing.
With AI models, it has excellent detection performance for difficult Y-shaped piercing situations.
With an image enhancement algorithm, subtle fish bones are clear at a glance.
The waterproof level of the detection channel is IP66, and it can be used for water washing operations.
With high-performance dehumidifiers, capable of withstanding external humidity up to 90%.
Automatically save inspection images for quality traceability and control during the inspection process.

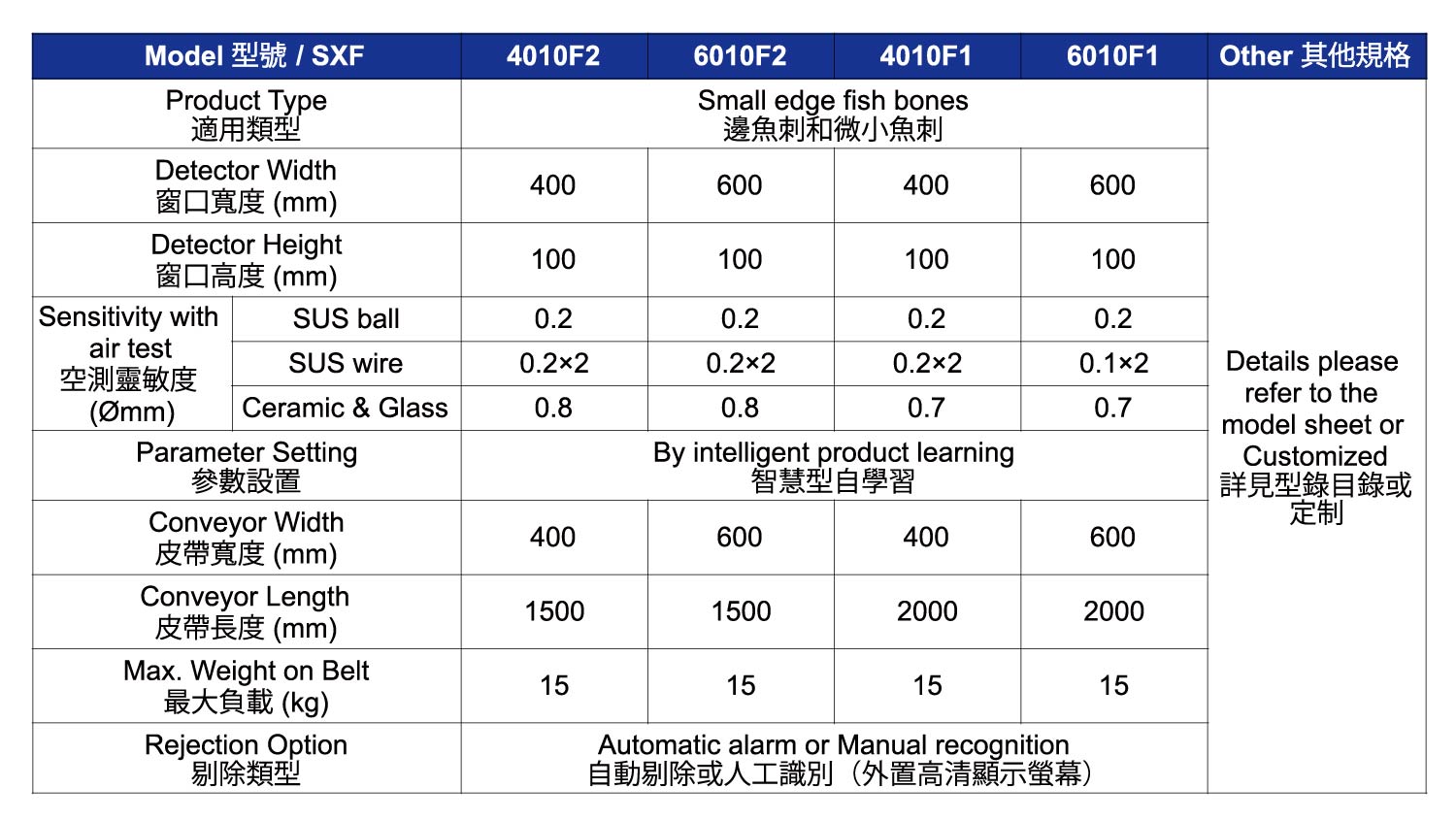

機台規格

Model 型號 / SXF		4010F2	6010F2	4010F1	6010F1	Other 其他規格
Product Type 適用類型		Small edge fish bones 邊魚刺和微小魚刺				Details please refer to the model sheet or Customized 詳見選型目錄或定制
Detector Width 窗口寬度 (mm)		400	600	400	600
Detector Height 窗口高度 (mm)		100	100	100	100
Sensitivity with air test 空測靈敏度 (Ømm)	SUS ball	0.2	0.2	0.2	0.2
	SUS wire	0.2×2	0.2×2	0.2×2	0.1×2
	Ceramic & Glass	0.8	0.8	0.7	0.7
Parameter Setting 參數設置		By intelligent product learning 智慧型自學習
Conveyor Width 皮帶寬度 (mm)		400	600	400	600
Conveyor Length 皮帶長度 (mm)		1500	1500	2000	2000
Max. Weight on Belt 最大負載 (kg)		15	15	15	15
Rejection Option 剔除類型		Automatic alarm or Manual recognition 自動剔除或人工識別（外置高清顯示螢幕）

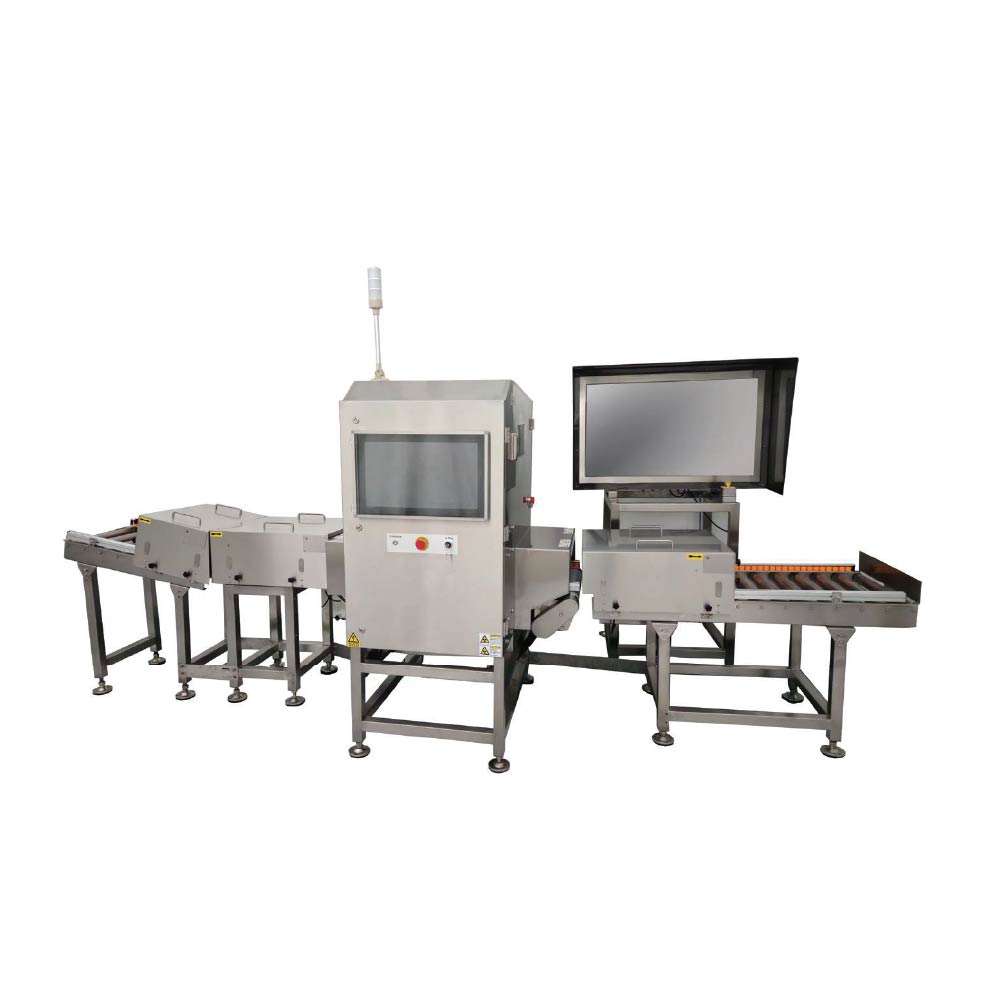

魚刺X光檢測機Fish Bone X-Ray Inspection System
