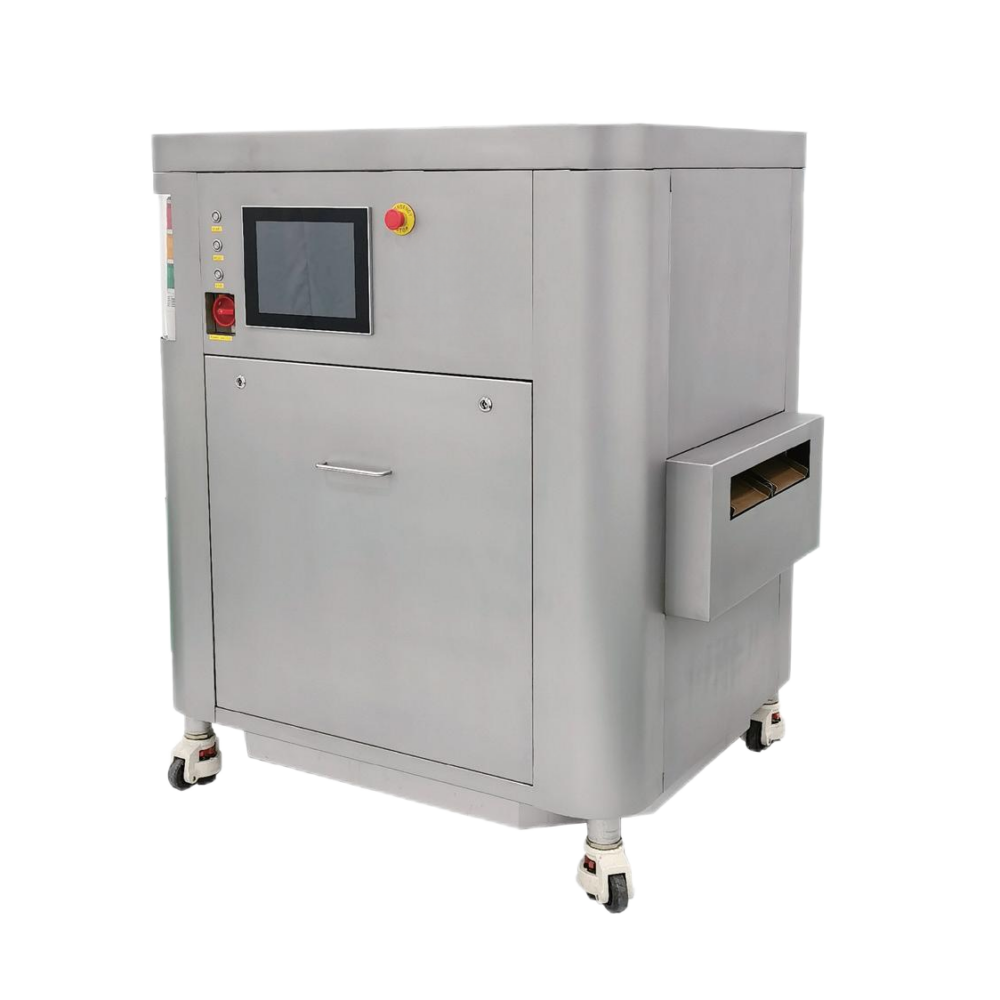

在線氣密洩漏檢測機

Online Package Leakage Detector

擁有國家發明專利，提供多樣機型選擇，適用於充氣包、液體包、粉體包、瓶裝、盒裝等各類應用。
支援在線連續檢測，效率高，可完全取代人工檢測。
整合運動控制與深度學習，以 BHI 智慧平台軟體為核心，實現檢測流程的智慧化與彈性化。
採用引導式操作介面，設備操作簡單，方便現場人員使用。
提供設備參數化管理，資料可輕鬆設定、調整、儲存與轉換。
系統運行穩定流暢，能耗低。
依據國際標準進行安全防護設計，安全可靠。
With core patented technology, a variety of models are available for inflatable packs, liquid packs, powder packs, bottles, boxes, and other applications.
Supports online continuous inspection with high efficiency, fully replacing manual inspection.
Integrates motion control and deep learning, with BHI intelligent platform software as the core, achieving intelligent and flexible inspection processes.
Wizard-style user interface for easy operation and convenient use by field staff.
Parameterized equipment management, allowing easy setup, adjustment, storage, and data conversion.
The system operates smoothly with low energy consumption.
Safety and protection design complies with international standards, ensuring reliability.

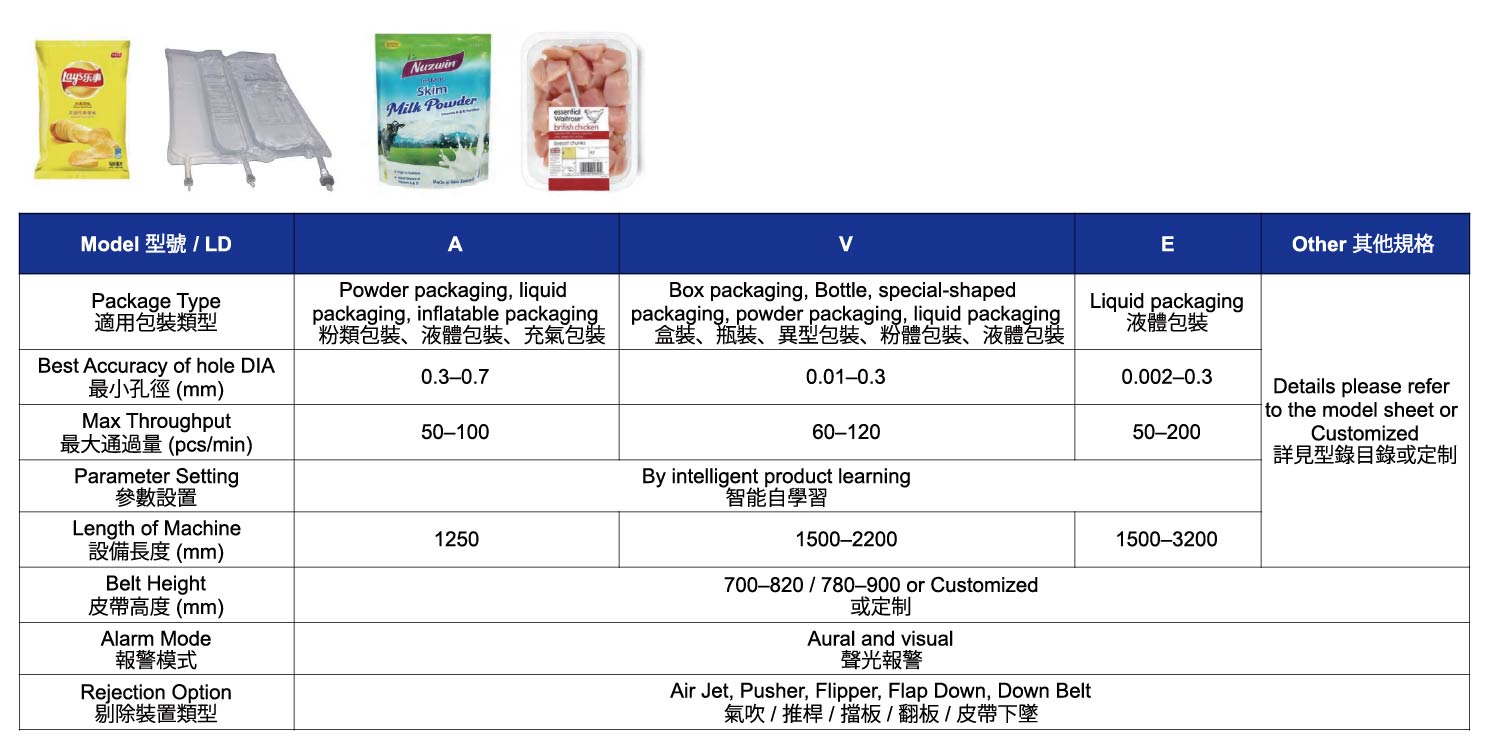

機台規格

Model 型號 / LD	A	V	E	Other 其他規格

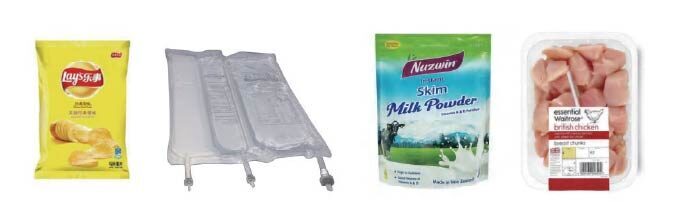

Package Type 適用包裝類型	Powder packaging, liquid packaging, inflatable packaging 粉類包裝、液體包裝、充氣包裝	Box packaging, Bottle, special-shaped packaging, powder packaging, liquid packaging 盒裝、瓶裝、異型包裝、粉體包裝、液體包裝	Liquid packaging 液體包裝	Details please refer to the model sheet or Customized 詳見型錄目錄或定制
Best Accuracy of hole DIA 最小孔徑 (mm)	0.3–0.7	0.01–0.3	0.002–0.3
Max Throughput 最大通過量 (pcs/min)	50–100	60–120	50–200
Parameter Setting 參數設置	By intelligent product learning 智慧型自學習
Length of Machine 設備長度 (mm)	1250	1500–2200	1500–3200
Belt Height 皮帶高度 (mm)	700–820 / 780–900 or Customized 或定制
Alarm Mode 報警模式	Aural and visual 聲光報警
Rejection Option 剔除裝置類型	Air Jet, Pusher, Flipper, Flap Down, Down Belt 氣吹 / 推桿 / 擋板 / 翻板 / 皮帶下墜
